Filling Valve

Discover the exceptional quality of our Filling Valve, crafted by a company with over 11 years of spectacular experience as a trusted manufacturer, supplier, and service provider. Our product line features exclusive Filling Valves for Water and Juice as well as Filling Valves for Soda and Soft Drink, designed to meet the top-notch standards of diverse beverage sectors. Engineered for phenomenal durability and precision, each valve ensures smooth operation and minimizes downtime, setting it apart from conventional alternatives. The valves offer efficient filling performance, advanced leakage prevention, and effortless maintenance, allowing businesses to operate at maximum productivity. Constructed with robust materials for extended longevity, our Filling Valves deliver unmatched reliability even under rigorous conditions. With user-friendly customization options, businesses can easily adapt our valves to specific production requirements, making them an order of choice for discerning clients. Renowned for their hygienic design, they uphold the highest safety and quality standards. Our supply ability in the domestic market extends to All India, and we encourage industrial clients to act swiftly as we maintain limited stock to preserve exclusivity for our customers. Choose our Filling Valves for a seamless blend of efficiency, quality, and value, and experience the difference trusted by countless industry leaders.

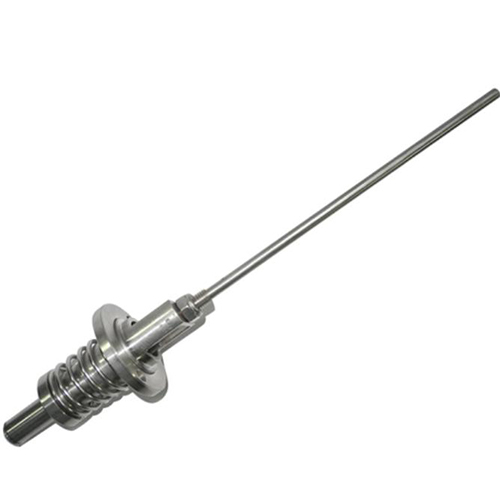

Filling Valve for Water and Juice

  • Application
  • Water Bottling, Juice Filling, Beverage Industry
  • Connection Type
  • Tri-clamp, Threaded, Welded Ends
  • Control System
  • Manual, Pneumatic, Optional Electric Actuation
  • Disc
  • Stainless Steel 304/316L
  • Features
  • Drip Free, Easy to Clean, CIP/SIP Compatible, Quick Change Over
  • Material
  • Stainless Steel 304/316 (Contact Parts)
  • Media
  • Other, Water, Juice, Non-viscous Liquids
  • Pin
  • Standard Stainless Steel Pin
  • Port Size
  • DN20 to DN50 (Customizable)
  • Power
  • Other, Manual / Pneumatic (as per model)
  • Pressure
  • Other, Max. 10 bar
  • Sealing
  • Food-grade Silicone or EPDM
  • Structure
  • Other, Spring-loaded, Precision-Engineered Valve Body
  • Temperature
  • 5C to 95C
  • Type
  • Filling Valve, Sanitary Valve
  • Valve Size
  • 1 inch, 1.5 inch, 2 inch (as per requirement)
  • Valve Type
  • Gravity Filling / Pressure Filling Valve
  • Voltage
  • Optional for Electric Type: 24V/220V AC

Filling Valve for Soda and Soft Drink

  • Application
  • Soda and Soft Drink Filling Machines
  • Connection Type
  • Threaded or Tri-Clamp
  • Control System
  • Manual or pneumatic actuator compatible
  • Disc
  • Stainless Steel 304/316
  • Features
  • Drip-free operation, easy maintenance, hygienic design
  • Material
  • Stainless Steel SS304 / SS316 (contact parts)
  • Media
  • Other, Carbonated Beverages, Water, Soft Drinks
  • Pin
  • Stainless Steel, corrosion resistant
  • Port Size
  • Customizable, typically 1/2 to 1 BSP/NPT
  • Power
  • Other, Pneumatic (no electrical power required)
  • Pressure
  • Other, Maximum Working Pressure up to 10 Bar
  • Sealing
  • High-grade food-grade seals (EPDM or Viton)
  • Structure
  • Other, Spring-loaded, single or multiple valves
  • Temperature
  • Suitable for 5C to 60C operating range
  • Type
  • Filling Valve
  • Valve Size
  • DN15 to DN25 (or as per requirement)
  • Valve Type
  • Mechanical / Pneumatic Actuated
  • Voltage
  • Not applicable (pneumatic operation)
